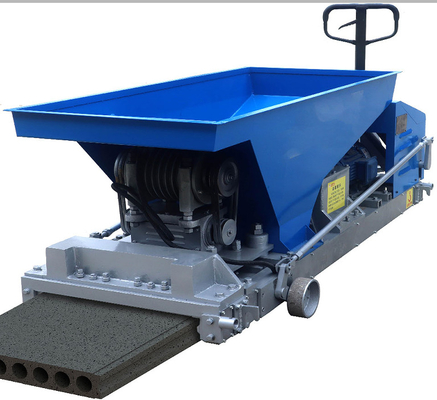

Slab/Wall Panel Making Machine high efficient production can be up to 500 square meters one shift per day (8 hours ) one machine. Combined with low raw material cost,it will bring you an extremely big profit.
Design
With our unique design of the extruder and vibrator, we can achieve highest concrete compaction.With this system you have the option to integrate reinforcement wires or not . The wires size allow to max.6mm which can increase the strength of wall panels.
Main Features
The wall which is tongued on side and grooved on the other has hollow cores running longitudinally to reduce the weight and optimize the use of materials. The tongue and groove has been specially designed to minimize the risk of cracking along the joints, which is a perennial problem in precast wall panels.
World standard drawing:
Machine Model | Details of wall panel | Power | DIM (cm) | WT (kg) | ||||||||||||||
thk. (cm) | Width (cm) | Hole No. | DIA (mm) | Main Motor (kw) | Vibrate motor (kw) | |||||||||||||
Interior partition Wall | JQT6*60 | 6 | 60 | 12 | 32 | 4 | 0.8 | 236 *113 *72 | 1000 | |||||||||
JQT7.5*60 | 7.5 | 60 | 8 | 45 | ||||||||||||||
JQT8*60 | 8 | 60 | 8 | 48 | ||||||||||||||
JQT9*60 | 9 | 60 | 7 | 58 | ||||||||||||||
JQT10*60 | 10 | 60 | 6 | 68 | ||||||||||||||
JQT11*60 | 11 | 60 | 6 | 68 | ||||||||||||||
JQT12*60 | 12 | 60 | 5 | 88 | 5.5 | 1.1 | 246 *113 *75 | 1200 | ||||||||||
JQT13*60 | 13 | 60 | 5 | 88 | ||||||||||||||
JQT14*60 | 14 | 60 | 5 | 88 | 1.2 | |||||||||||||
JQT15*60 | 15 | 60 | 5 | 100 | 1250 | |||||||||||||
JQT16*60 | 16 | 60 | 5 | 100 | ||||||||||||||
Exterior Wall | JQT18*60 | 18 | 60 | 5 | 108 | 7.5 | 1.5 | 255 *113 *75 | 1650 | |||||||||
JQT20*60 | 20 | 60 | 12 | 68 | 2 | |||||||||||||
Speed(m/min): 1.3~1.6 Screw Auger life(km): >=150 | ||||||||||||||||||
Purpose: The machine is used for the production of concrete lightweight partition wall panel
Principle: The machine adopt extrusion technology, movable forming.
Materials: The raw materials are fly ash, slag, creamsite, cinders,cinerite,
pumice,vermiculite and so on. You can choose some materials as per your local resources.
Producity: The production speed is 1.3-1.7 m per minute , 500 Sqm per shift .
Sizes: Panel width : 600mm; Panel Thickness : 75,80,90,100,120mm ,etc ; Panel length : cuting any lenght as your requirements
Reinforcement: Both sides of the wall panels can insert reinforcement wires, diameter of 1.5- 6mm
We can customized machine according your need
Question 1. What is the Standard Size of Wall panel machine
For Precast Light weight Wall panel machine, JQT7.5*60 and JQT9*60 is more Standard all over the world ( 75mm thickness, 600mm width etc.)
Question 2. How Much Sqm will be installed 1 day?
Very quickly by Our Wall panel Installer (450sqm/day)
Question 3. Can we use wall panel as Exterior and interior Wall?
Yes, Can be used for both. (Exterior can be Double Layer Holes. Interior can use 9*60 or 7.5*60)
Question 4. How To Order From "Henan Victory Industrial co. ltd."?
Confirm PI (Profroma Invoice) with our sales Man
Payment: 50% deposit, the Balance 50% before shipping.
