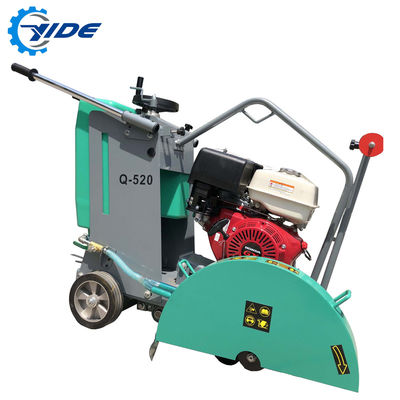

Construction road cutting machine asphalt concrete road cutter Q-520
Road grooving machine mainly used to concrete and asphalt pavement,spuare cut expansion joints repair work.
Feature:
1,Adjustable or handle epuipped with shock absorber to make the operation comfortable and simple.
2,The strengthened protective steel cover can effectively protect the engine and extend the service life of the machine.
3,Save the maintenance cost,the fully enclosed belt protective cover is protected from dust damage to the belt.
4,The road cutting machine has the advantages of simple structure,smooth cutting seam,high efficiency,convenient operation and flexible operation.
5,Increase capacity rotary plastic water tank,reduce the trouble of frequent water addition.
| Model | Q420 | Q520 |
| Engine | HONDA GX390 | HONDA |
| GX390 | ||
| Fuel Type | Gasoline | Gasoline |
| Nominal | 13hp/ 9.7kw | 13hp/9.7kw |
| power | ||
| Nominal rotate speed | 3600rpm | 3600rpm |
| Fuel capacity | 6.5L | 6.5L |
| Water tank capacity | 40L | 40L |
| Saw blade diameter | 400mm | 500mm |
| Cutting depth | 150mm | 180mm |
| Forward way | Hand-push | Manual/Auto |
| Weight | 142KG | 158KG |
