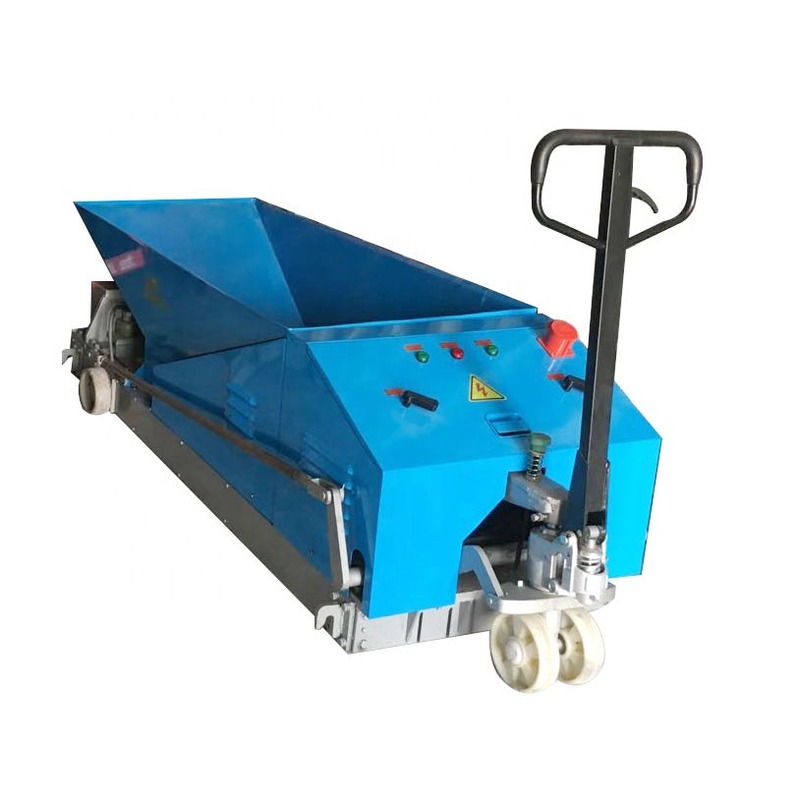

Lightweight Wall Panel Extruding Machine
Introduction:
The Lightweight Wall Panel Extruding Machine is used to make lightweight wall panels, widely used for partation walls of building, yard fence, or farm fence.
Interior wall panel making machine: 80*600mm, 90*600mm, 100*600mm, 120*600mm
Exterior wall panel making machine: 150*600mm, 180*600mm, 200*600mm
Accessories: Screen, Crusher, Mixer, Cutter, Dumper, Board Carrier, Wire Rack, etc.
Random stretched rebar or pretensioning rebar (1.6-2.5mm), up 4 pieces, and lower 4pcs,
Portland cement as the gelling agent
Low carbon steel wire as the reinforced material
Rich material source:
Expanded Perlite, Ceramsite, Cinder, Fly ash, River Sand, Grain Slag, Straw etc.
Advantages: Special technology, save cost, improves quality and efficiency.
Specification:
|
Model (JQT) |
Slab Width (mm) |
Slab Thickness (mm) |
Holes Diameter |
Forming Speed (m/min) |
Main Motor (KW) |
Vibrator (KW) |
Weight (KG) |
|
80*600 |
595±2 |
78±1 |
8×Φ48 |
≥1.4 |
5.5 |
0.8 |
1010 |
|
90*600 |
595±2 |
88±1 |
7×Φ58 |
≥1.4 |
5.5 |
0.8 |
1050 |
|
100*600 |
595±2 |
98±1 |
6×Φ68 |
≥1.4 |
5.5 |
0.8 |
1150 |
|
120*600 |
595±2 |
118±1 |
5×Φ88 |
≥1.4 |
5.5 |
1.1 |
1300 |
|
150*600 |
595±2 |
148±1 |
5×Φ95 |
≥1.4 |
5.5 |
1.1 |
1500 |
|
180*600 |
595±2 |
178±1 |
3×Φ140 |
≥1.4 |
7.5 |
2.2 |
1800 |
|
200*600 |
595±2 |
198±1 |
3×Φ142 |
≥1.4 |
7.5 |
2.2 |
2000 |
|
Note: the wall panel extruding machine adopts Alloy spiral reamers which are more durable. |
|||||||
Characteristics:
1- High efficiency, can produce 1.4m~1.8m/min board;
2- Uniform board density;
3- High mechanization degree, hydraulic lifting;
4- Save energy;
5- Long lifetime, Reamer can produce more than 6000-8000meter boards, vibration layering can produce more than 100000meter boards.
