Home /Products/Concrete Brick Maker/Qt4-15s Cement Concrete Hydraulic Brick Clay Interlocking Brick Machine

Qt4-15s Cement Concrete Hydraulic Brick Clay Interlocking Brick Machine

1 Set
MOQ
$15,950.00(1 - 1 Sets) $14,900.00(>=2 Sets)
Price
Qt4-15s Cement Concrete Hydraulic Brick Clay Interlocking Brick Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works
Showroom Location: Egypt, Viet Nam, Philippines, India, Thailand, Kenya, Chile, UAE, Bangladesh, South Africa, Nigeria
Condition: New
Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material: CONCRETE
Processing: Brick Production Line
Method: Hydraulic Pressure
Automatic: Yes
Production Capacity (Pieces/8 Hours): 15s/pallets
Voltage: 220v/380v/415v/440v
Dimension(L*W*H): 4200x1800x2800mm
Warranty: 1 Year
Key Selling Points: Easy To Operate
Brick Size: 400*100*200 Mm, 400*120*200 Mm, 200*100*60 Mm, 300*150*100 Mm, 400*150*200 Mm, 240*115*90 Mm, 200*200*60 Mm, 150*150*100 Mm, 400*200*200 Mm, 230*220*115 Mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: PLC, Gear, Motor, Bearing, Gearbox
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Viet Nam, Philippines, Thailand, Chile, UAE, Bangladesh, South Africa, Nigeria
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Certification: ISO9001/QA
Basic Infomation
Certification: ISO9001/QA
Payment & Shipping Terms
Packaging Details: no package
Product Description
Product Description

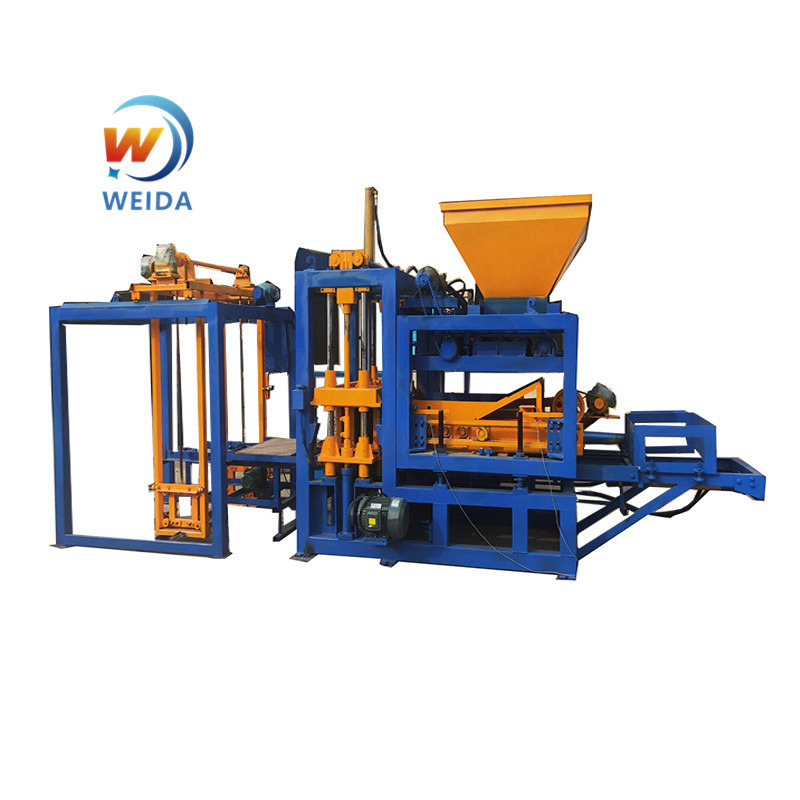

QT4-15s full automatic fly ash bricks block making machine in south africa
QT4-15s is a very simple machine ,controled by PLC . it is very easy to operate , suitable for new block maker who want to
produce various kind of blocks .




Main Parts

Name
QT4-15S host machine
Dimension
3700x2100x2300mm
Power
17kw
Molding time
15s
Vibration force
35.5kn
Pallets size
850x550x20mm
Voltage
380/415/440 and others as design
Work area
160㎡
Name
JD500 mixer
Output capacity
500L
Input capacity
800L
Capacity
20m³/h
MAX.aggregate size
60/40
Upload material height
658mm
Weight
1240kg
Dimension
620x2215x3985mm
Power
11kw
Name
wd-4 stacker
Lifting motor
1.5kw
Moving motor
1.5kw
Cycle
15-20s
Weight
2500kg
Dimension
2500x1800x2300mm



PLC control cabinet




Hydraulic station


Features:


1.This machine is hydraulic pressure , the final block compressive strength can reach 15 mpa . it is controled by PLC , very easy to operate . and has high efficiency , reasonable design .
2.Good adaptability of raw materials, advanced step vibration molding technology . can use slag , fly ash and other industry residue
3. It can make many kind of block by changing molds .Cater to the market demand to the greatest extent, let the equipment maximize the efficiency.
Capacity
It is a small full automatic concrete block molding machine which is specialized in construction building block such as hollow block , solid block , paver block , porous brick , road kerb , grassing brick , ring tree brick and other concrete products .The material can be fly ash , cinder , coal gabgue and other industrial residue . Add the color material feeding machine (color system ) can produce colored products .
Details Images
Packing and delivery
Exhibition
Company Introduction
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province, China. With RMB 16 million investment and 53,000 square meters area, it is a high-tech development enterprise with a high starting point. Its main business covers autoclaved aerated concrete production line, large and medium-sized non-burning brick machine, high-strength gypsum powder extraction equipment. It has advanced processing equipment, exquisite professional technology and rich manufacturing experience.It has 18 professional senior technical personnel and more than 350 professional technical workers. With all kinds of precision machining machine tools and advanced inspection and testing equipment 117 sets, with a large number of precision processing and advanced inspection and testing and debugging equipment, the annual output of autoclaved aerated concrete production line 200 sets, large and medium-sized pressure molding machine 500 sets, high strength gypsum powder production line 120 sets.Products sold in more than 20 provinces and cities, more than 50 regions, some products export to Russia, Vietnam, South Korea, India, Iran,Singapore, Australia and other countries and regions.Under the guidance of the business philosophy of "people-oriented, leading technology, winning quality, and serving users", the company provides updated products for customers, and provides high-quality services for customers with advanced technical guidance.
